攤鋪機出租使用后的故障排除
來源：http://m.seatostar.com/ 日期：2023-07-05

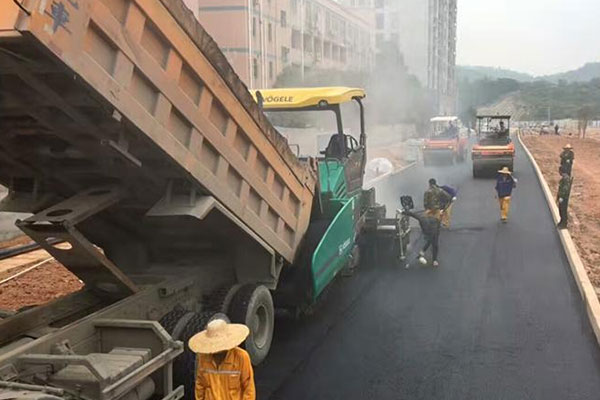

攤鋪機是一種主要用于高速公路上基層和面層各種材料攤鋪作業的施工設備。是由各種不同的系統相互配合完成攤鋪工作的，主要包含行走系統、液壓系統、輸分料系統等等。下面來看看濟南攤鋪機出租使用后的故障排除。
The paver is a construction equipment mainly used for paving various materials on the base and surface layers of highways. The paving work is completed by the cooperation of various systems, mainly including the walking system, hydraulic system, material conveying and distribution system, and so on. Let's take a look at the troubleshooting of the Jinan paver after rental use.
1、液壓油過熱
1. Hydraulic oil overheating
攤鋪機液壓系統的油溫過高會使油液黏度降低，泄漏量增加，所潤滑部位的油膜破壞，使部件的磨損加?。煌瑫r，高溫還會使橡膠等材料制成的密封墊過早老化而損壞。因此，控制適宜的油溫非常重要。當油溫過高時，必須停機檢查，一般可從以下幾個方面著手：
If the oil temperature of the hydraulic system of the paver is too high, the viscosity of the oil will decrease, the leakage will increase, and the oil film in the lubricated parts will be damaged, leading to increased wear of the components; At the same time, high temperatures can also cause premature aging and damage to sealing gaskets made of rubber and other materials. Therefore, controlling the appropriate oil temperature is very important. When the oil temperature is too high, it is necessary to stop the machine for inspection, which can generally be started from the following aspects:
（1）檢查油箱液面是否過低。經驗表明，油溫高往往是因為油箱缺油所致，故缺油時應及時補充。
(1) Check if the oil tank level is too low. Experience has shown that high oil temperature is often caused by a shortage of oil in the fuel tank, so timely replenishment should be made when there is a shortage of oil.
（2）液壓油濾芯及回路是否堵塞。
(2) Check if the hydraulic oil filter element and circuit are blocked.
（3）散熱器是否正常。散熱器如黏附了大量的灰塵，可導致散熱不良，使油溫升高。由于攤鋪機工作環境灰塵較多，因此對散熱器應及時清理．
(3) Check whether the radiator is normal. If a large amount of dust is adhered to the radiator, it can cause poor heat dissipation and increase the oil temperature. Due to the high dust content in the working environment of the paver, the radiator should be cleaned in a timely manner
（4）液壓油質量是否合格。若加入的油質量不合格，也會造成系統油溫過高。
(4) Is the quality of hydraulic oil qualified. If the quality of the added oil is not up to standard, it can also cause the system oil temperature to be too high.
另外，液壓系統在缺油時工作，容易造成泵和馬達損壞，因此缺油故障排除后還要檢查泵和馬達的運轉狀態，必要時更換泵和馬達的已損部件。
In addition, when the hydraulic system operates in a shortage of oil, it is easy to cause damage to the pump and motor. Therefore, after troubleshooting the shortage of oil, it is necessary to check the operating status of the pump and motor, and if necessary, replace the damaged parts of the pump and motor.
2、螺旋布料器不工作
2. Spiral distributor not working
攤鋪機有時會發生左、右布料器不工作的情況，原因一般為補油系統有故障。引起補油系統壓力偏低的原因有：補油泵進油道不暢；補油泵溢流閥壓力偏低；補油泵本身故障；液壓馬達嚴重泄漏。一般應重點檢查補油泵及其溢流閥。
Sometimes, the paver may experience left and right spreaders not working, usually due to a malfunction in the oil replenishment system. The reasons for the low pressure in the refueling system are: the inlet passage of the refueling pump is not smooth; The pressure of the overflow valve of the makeup oil pump is low; The oil replenishment pump itself is faulty; The hydraulic motor has severe leakage. Generally, the focus should be on inspecting the makeup oil pump and its overflow valve.
攤鋪機廣泛用于城市道路、機場跑道和公路路面的施工，可以提高攤鋪層的內在質量和路面外觀質量，生產效率提高。您有需求就來我們網站http://m.seatostar.com咨詢吧！
Pavers are widely used in the construction of urban roads, airport runways, and road surfaces, which can improve the internal quality of the paving layer and the appearance quality of the road surface, and improve production efficiency. Come to our website if you have any needs http://m.seatostar.com Consult!
